Cone Creel Machine

India’s First Seven Segment Dual Screen System

Built with a Heavy-duty MS fabricated, powder-coated, vibration-free structure, the creel ensures durability and stable performance. Its 180° rotating modular frame enables quick cone positioning and allows re-creeling during warping. Optical through-beam stop motion, row-wise indicators & Column wise indicator, and varieties of tensioner with stainless steel discs and ceramic eyelets ensure fast yarn break detection and consistent yarn tension.

Models/Variants

Parameters Revolving Type Cone Creel
Creel Ends 240 to 1200 Ends (As per requirment)
Material Heavy Duty Mild Steel
Pitch (vertical x Horizontal) 240 / 280 / 300 / 380 / 400 (As per requirment)
Deck 6 , 7 , 8
Spindle Rod 10 mm . 12 mm, 14 mm
Color Teal Grey
Warp Stop Motion Sensor Based Stop Motion / Card with Indicator
New Technology Seven Segment Dual Screen on LHS & RHS on Top of Creel for Broken Warp Detection

Accessories

Warp Stop Motion

Seven Segment Dual Screen

Individual Air Nozzle & Over Head Travelling Cleaner

High Grade Ceramic Guide

Manual & Automatic Creel

Tensioners

Accessory Image 1

Tiana Type Tensioner

Accessory Image 2

Ratchet Type Tensioner (For Standard Creel)

Accessory Image 3

KFD Type Tensioner (For Auto Creel & Standard Creel)

Accessory Image 4

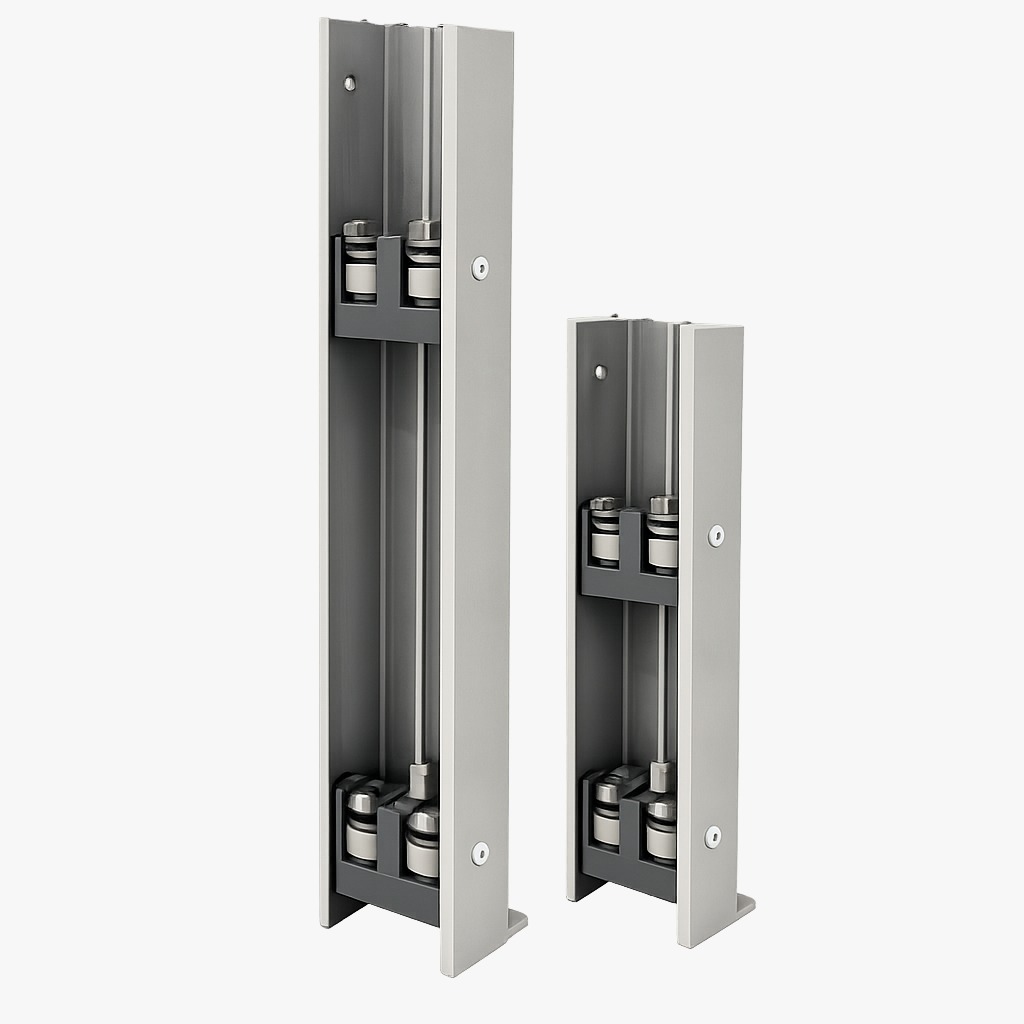

Centrally Controlled Pneumatic & Non Pneumatic Tension (CBR) for Auto Creel

Accessory Image 5

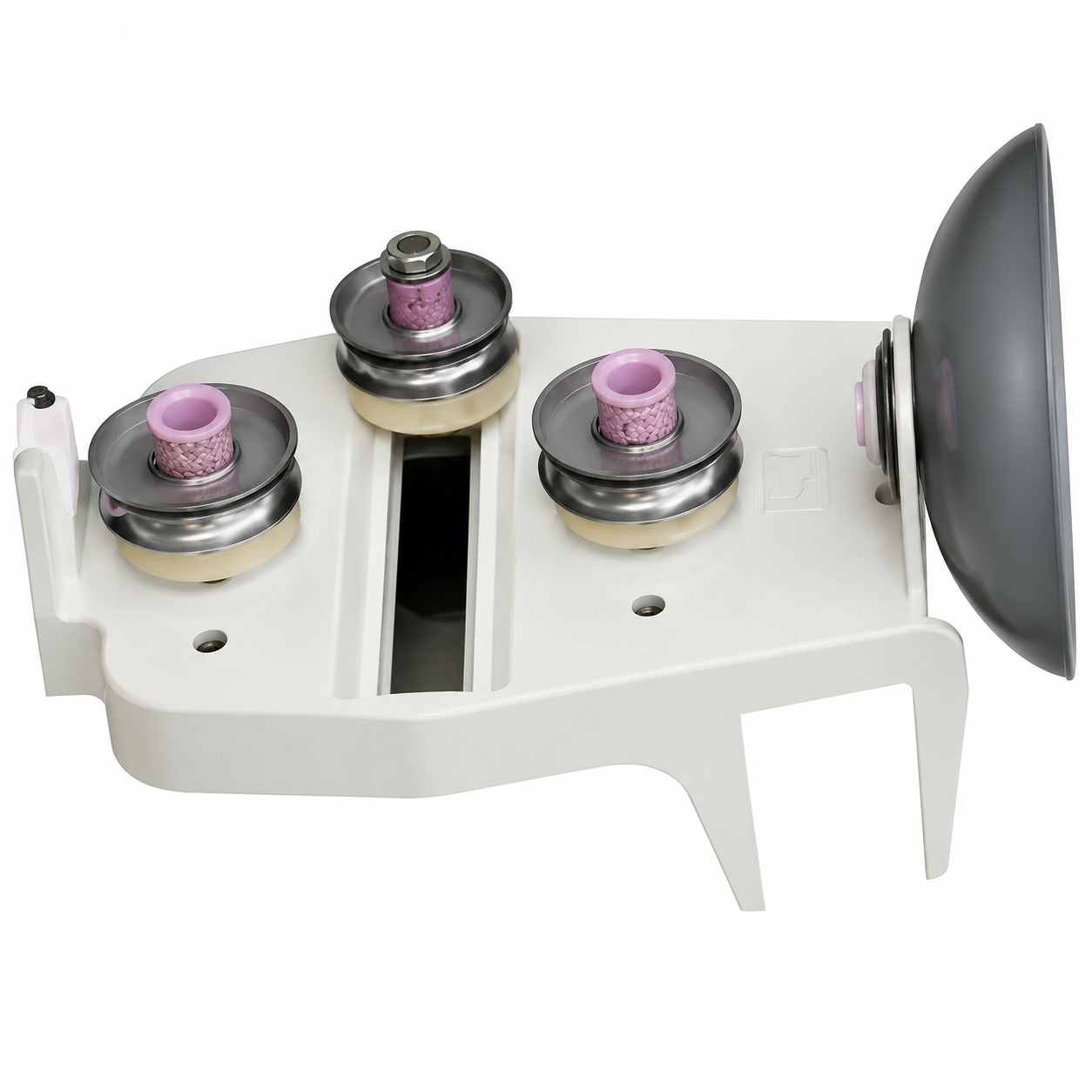

Centrally Adjustable Tensioner (For Auto Creel)
